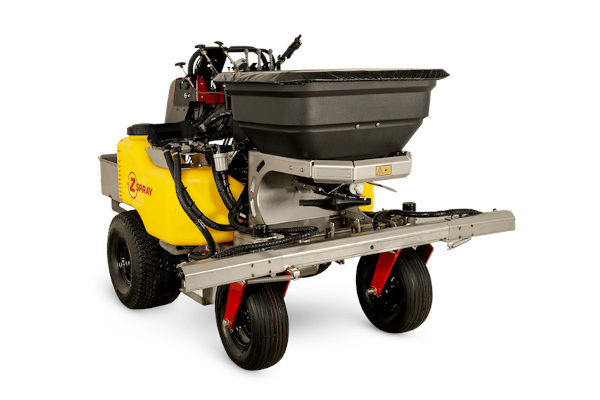

Features
Stainless Steel Chassis
Delivers maximum durability and corrosion resistance.
Simultaneous Application
Spread and spray at the same time for maximum productivity.
Digital Speedometer
Enables precise calibration of spread and spray systems.
Foot-Operated Switch
Enables precise application starts and stops and frees the operator’s hands to control the machine.
Fewer Fill-Ups
Equipped with a 220-pound hopper plus two 50-pound fertilizer trays and has a total tank capacity of 30 gallons delivering maximum runtime between fill-ups.
75-Foot Hose Reel
Easily spray in hard to reach places up to 75 feet from the machine.
Locking Caster Wheels
Patented locking caster system enables safe operation on varied terrain.
Specs
ZS4630 - N/A in California
| Equipment | |
| Front Tires | 16 x 6.5-8 |
| Rear Tires | 20 x 10.5-8 |
| Frame | Stainless Steel |
| Gate Width | 46" |
| UPC | 193308000916 |
| Onboard Intelligence | Digital Speedometer |
| Power Components | |
| Transmission | Hydrostatic |
| Drive System | Pump & Wheel Motor |
| Fuel Capacity | 5-gallon (18.9-L) fuel tank |
| Ground Speed | 0-8.0 mph (12.9 kmph) forward, 0-4.0 mph (6.4 kmph) reverse |
| Dimensions | |
| Length | 73 in. |
| Width | 46 in. |
| Height | 50 in. |
| Curb Weight | 920 |
| Spreader System | |
| Hopper Capacity | 220 lbs. + two 50 lbs. fertilizer trays; hydraulic motor |
| Spread Width | Adjustable from 3 ft. up to 25 ft |
| Engine | |
| Displacement | 479 |
| Engine Spec | 3054470592G1 |
| Engine Brand | Vanguard |
| Spray System | |
| Tank Capacity | 30 gal. (two 15 gal.) |
| Pump | Remco |
| Spray Rate | Capacity per Nozzle - 0.22 gpm at 30 psi, 0.25 gpm at 40 psi |
| Spray Width | 2 ft, 4 ft, 6 ft, or 8 ft |
Accessories and Attachments
30 Gallon Auxiliary Tank
The 30 gallon auxiliary tank transforms the Z-Spray into an all liquid unit. Includes frame, hoses and quick release fittings.
Z-Spray Parts Kit
Services Z-Spray Max, Mid and Junior 42 models serial 408,644,346 and higher.
60-Amp Alternator Kit
Adds charging capacity allowing you to run multiple accessories at one time. (Only available for horizontal shaft engines.)
7-Gallon Isolated Tank (Right Side)
The 7-gallon isolated tank allows the user to spot treat utilizing different chemicals than those being used in the primary tanks. Includes a 5.0 GPM pump, frame, and 15’ coil hose. When using an Isolated tank, we recommend installing an alternator kit which is sold separately.
Foam Marker (Jr/Mid Replaces Fert Box)
The foam marker system visually assists the operator with providing accurate product coverage. The foam marker comes complete with frame, fittings and hoses and may be used on all twin cylinder Z-Sprays.
Liquid Valve [7 GPM] and Alternator Kit
This high volume spray system enables the machine to run at a high volume for an extended amount of time. The large ¾” valves offer less restriction while the 7 gallon per minute pump provides added flow and agitation. The 60 amp alternator provides added charging to accommodate the 7 gpm pump. (Only available for horizontal shaft engines.)
7 Gallon Auxiliary Tank (Left Side, Replaces Fert Box)
The 7-gallon auxiliary tank allows for use of multiple liquid products. Includes frame, hoses, and fittings.
