Features
Clean Cut & 3 Year Warranty
Our low-profile, forward-mounted cutting discs provide a flat header angle, resulting in a cleaner, smoother cut. Our cutterbar design is backed by MacDon’s 3 Year Cutterbar warranty. That’s our way of ensuring worry-free harvesting performance.
Overload Protection
Each of the disc spindles on the R1 Series cutterbar feature a shear pin. These pins are designed to shear if the disc comes in contact with any object large enough to stop its movement. The disc then moves up and out of the path of the adjacent discs, reducing the risk of serious damage to the cutterbar. The shear pin can be replaced in-field, letting operators get back to cutting quickly.
Front Row Seat to Productivity

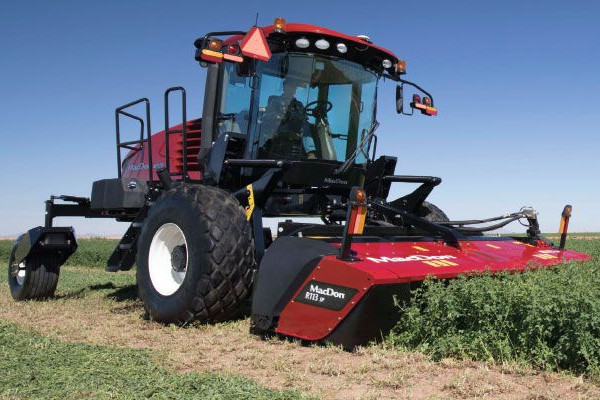

The R1 features an amazing in-cab view of the crop flow coming out of the back of the header. Being able to see the crop lets operators monitor the quality of the windrow that’s being laid down on-the-go. The header forward position also allows easy access to the adjustable windrow forming shields.
Serious Conditioning
Featuring the industry’s widest conditioning roll at 129” (328 cm), and 3 interchangeable
conditioning options. You can choose: Steel Inter-Meshing, Polyurethane Inter-Meshing,
or No Conditioner option. The R1 lays down well-conditioned wide to narrow windrows to suit
a variety of conditioning needs. The wide rolls increase the amount of crop contact, improving crimping performance and ensuring thorough conditioning of the plant stem.
Steel Inter-Meshing Rolls
This crimp style is especially effective for stiff or solid plant stem material. It produces well-conditioned windrows over a wide range of widths and is ideal for high-volume crops, which require aggressive feeding through the header. In smooth- stemmed crops, the steel inter-meshing roll action promotes even plant dry down by creating uniform crimps on the plant stem without bruising the delicate leaves. Steel rolls are extremely durable and require minimal maintenance.
Polyurethane Inter-Meshing Rolls
Polyurethane delivers a combination crimp and crush action while being more gentle on plant leaves. The crushing action of the 129” wide (328 cm) polyurethane rolls produce a windrow that promotes quick, even dry down of crops like alfalfa and alfalfa grass mixes. Polyurethane is also very effective on fine-stemmed plants with solid stems, like native hay, timothy, and Bermuda grass.
Specs
| Size | 13 ft. (4m) |
| Weight | 4650 lb (2109 kg) |
| Number of Cutting Discs/Blades | 2-Aug |
| Drive (Maximum Hydraulic Power) | 127 HP (94 kW) |
| Cutting Speed/Knife Tip Speed | 1,800 to 2600 rpm / 131 mph (210.8 km/h) to 189 mph (304 km/h) |
| Cutting Angle Range | 0-8˚ below horizontal |
| Gear Train Protection | Shearable key in each spindle |
| Hay Conditioner Option: Type/ Length | Inter-meshing steel / 129" (328 cm), polyurethane rolls / 129" (328 cm), no conditioner |
| Options | Tall crop divider |
