Features
EVEN MORE CLEARANCE

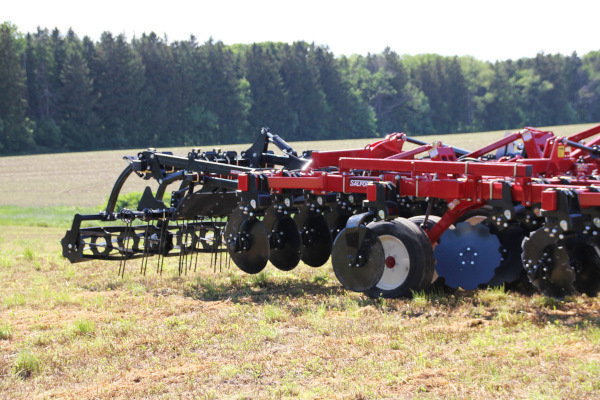

The patent pending rubber suspension blade mount has been completely redesigned to create even more clearance between the four rows of concave blades. The four rows of blades on a deep frame give the 5200 ENFORCER much more clearance than compact, high speed discs.
COMPOUND BLADE ANGLE
The 5200's patent pending rubber suspension blade mounts hold the blade on two angles; the first three rows are open faced similar to position the blade similar to the angled gang on a tandem disc.
The blades are also tipped under to create suction that holds the 5200 in the ground when going through hard soil.
FOUR ROWS OF BLADES, TWICE THE WORK
Four rows of concave blades replicate two passes with a tandem disc. The result is a superior residue blend and field finish in one pass that is often ready as a stale seedbed in the spring.
Specs
| I-5200 | |
| Model Size | 12' (3.66 m) 16' (4.88 m)* * 19' (5.79 m) 22' (6.71 m) 25' (7.62 m) 29' (8.84 m) 36' (10.97 m)** 39' (11.89 m) |
| Specifications | |
| Working Width | 12'1" (3.68 m) 15'5" (4.70 m) 18'9" (5.72 m) 22'1" (6.73 m) 25'5" (7.75 m) 28'9" (8.76 m) 35'5" (10.80 m) 38'9" (11.81 m) |
| # of Concave Blades* | 28 36 44 52 60 68 84 92 |
| Transport Height | No Wings 9' (2.74 m) 10'3" (3.12 m) 12'4" (3.76 m) 13'5" (4.09 m) 14'7" (4.48 m) 14'6"(4.45m) 15'11" (4.85 m) |
| Transport Width | 13'10" (4.22 m) 11'6" (3.51 m) 15'2" (4.62 m) 15'2" (4.62 m) 15'2" (4.62 m) 15'2" (4.62 m) 20'6" (6.25) 20'6" (6.25 m) |
| Approx. weight with Standard Harrows | 11,100 lbs (5.04 T) 15,600 lbs (7.08 T) 20,700 lbs (9.39 T) 22,800 lbs (10.34 T) 24,000 lbs (10.89 T) 27,900 lbs (12.66 T) 37,000 lbs (16.78 T) 38,200 lbs (17.24 T) |
| 5200 Enforcer requires 15 - 20 horse power per foot. Power required varies by ground conditions, operating depth and speed. * Blade count does not include 3 guide coulters per machine **Split Wing Model *** Bi-fold wings * * 16' 3-pc Flat Fold |
|
