Features
Performance Features
- Digging Depth (2 ft. flat bottom): 7’8”
- Overall Operating Height (fully raised): 119”
- Reach from Swing Post: 123”
- Bucket Rotation: 180°
- Swing Arc: 180°
Safety Features
- Stabilizer Width: 89”
Specs

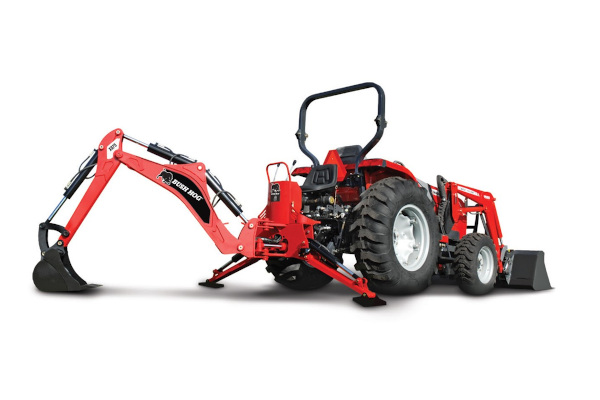

| Model | XD75 |
| Transport Height (with boom fully retracted) | 79" |
| Transport Width (with stabilizers up) | 42½" |
| Loading Height (bucket at 60° rotation) | 80" |
| Ground Clearance | 10½" |
| Transport Length | 80" |
| Transport Weight (base unit only - no bucket or mounts) | 800 lbs. |
| Digging Depth (2 ft. flat bottom) | 7'8" |
| Overall Operating Height (fully raised) | 119" |
| Reach from Swing Post | 123" |
| Bucket Rotation | 180° |
| Swing Arc | 180° |
| Stabilizer Width (Spread) | 89" |
| Stabilizer Width (Transport) | 42½" |
| Operating Pressure | 2250 psi |
| SAE* Dipper Boom Digging Force | 2300 lbs. |
| SAE* Bucket Digging Force | 3800 lbs. |
| Boom Lift Capacity (end of dipper 3' from ground) | 925 lbs. |
| Hydraulic Volume Requirements | 3 1/2 - 6 GPM* |
| Flow Divider | Included |
| Recommended Tractor HP | 30-60 HP |
| Recommended Skidsteer Requirements | 30-60 |
| Bucket Sizes Available | 9, 12, 15, 18, 24 |
| 3 Point Hitch | Cat I (PT300) / Cat II (PT322) |
| Cylinder Diameters | |
| Main Boom Cylinder Diameter | 3 |
| Dipper Cylinder Diameter | 2.5 |
| Bucket Cylinder Diameter | 2.5 (x2) |
| Swing Cylinder Diameter | 2.5 |
| Stabilizer Cylinder Diameter | 2.5 |
| Extender Cylinder Diameter | - |
