Heavy Duty Construction

5000 Series Applicators are built with heavy duty components to assure your applicator always gets the nitrogen you need when it is needed most. The large 7"×7" toolbar frame flexes for consistent application while withstanding the high stress demands placed on the toolbar when the coulters are in the ground. The extra strong high-tensile grade steel shafts resist bending or twisting while keeping the coulters in place.

Shortest Hitch-to-Axle Length

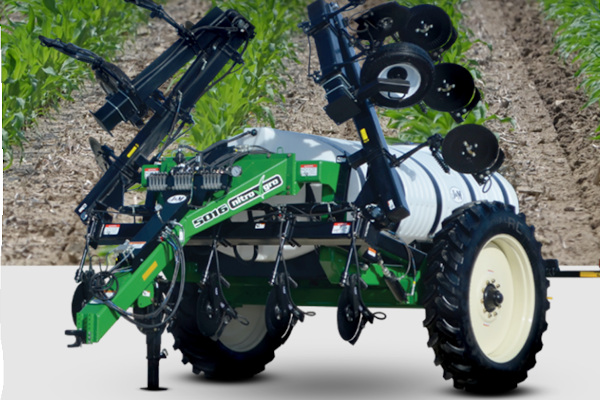

Short hitch-to-axle length (12''-0" on 5010 and 14'-0" on 5016 models) allows the applicator to follow directly behind the tractor, creating just one set of tracks that reduces crop damage and eliminates the need for a steerable hitch option.

More Standard Features

• Narrow transport width for easy field-to-field transportation
• Automatic transport locks don't interfere with the stroke control spacers
• Heavy duty hinges with 2½" pivot pins with greaseless poly bushings
• Unique locking bar allows you to unfold and lock the bar without leaving the cab of the tractor (no locking pins)
• Toolbar flexes to provide consistent application
• Transparent tank for easy monitoring
• Automatic wing kick
• 2" tank fill tube

Design Features

• 30” of crop clearance extends application window
• Extra strong high tensile grade steel coulter shafts
• Automatic transport locks don’t interfere with the stroke control spacers
• Narrow transport width for easy field-to-field transportation
• Short pin to axle distance reduces crop damage
• Heavy-duty hinges with 2 1 /2” pivot pins with greaseless poly bushings
• Unique locking bar allows you to unfold and lock the bar without leaving the cab of the tractor (no locking pins)
• Larger tool-free adjustable gauge wheels increase flotation and durability
• Single 7” x 7” toolbar frame
• Toolbar can flex to provide consistent application or be used as a rigid bar
• Transparent tank for easy monitoring
• Automatic wing kick
