Features
Heavy-Duty Series for Folding Heads
16' and 20' Transports

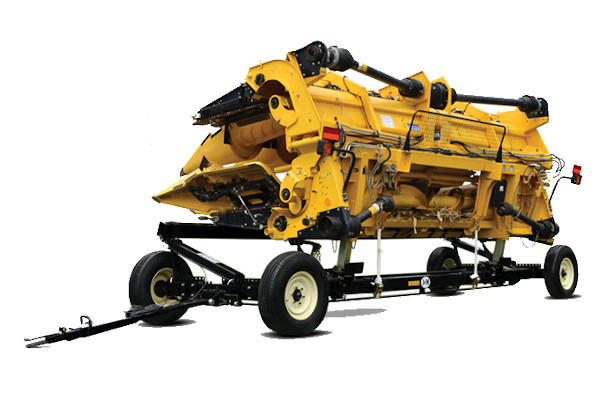

HT-974-16 and HT-974-20 transports are made for folding corn and forage harvester heads. The compact size and heavy duty construction features a thick wall upper bar and trussed lower bar to accomodate the extra weight of folding heads. The Heavy-Duty Series is available in both the 16' and 20' sizes. The low overall height allows the header to be placed on the tranport with ease.
FEATURES:
- Transports folding corn heads (John Deere, Case IH, New Holland, Drago, and Geringhoff)
- Accommodates heads with and without stalk choppers
- Shorter tongue
- Truss under lower bar and thicker wall on upper bar for heavier capacity
- Lower light bar to clear corn heads
Specs
| Model | HT-974-20 |
| Weight | 1,725 lbs |
| Capacity (net) | 11,000 lbs |
| Spindle Size | 1 3/4" Diameter |
| Wheel Size | 15" x 6" - 6 Bolt |
| Tire Size | 225/75R15E |
| Steel Upper Bar | 4" x 6" |
| Upper Bar Length | 20' |
| Box Channel Axle Frame | 6" |
