Features
Low‑Profile Header Transports
Built for More Clearance

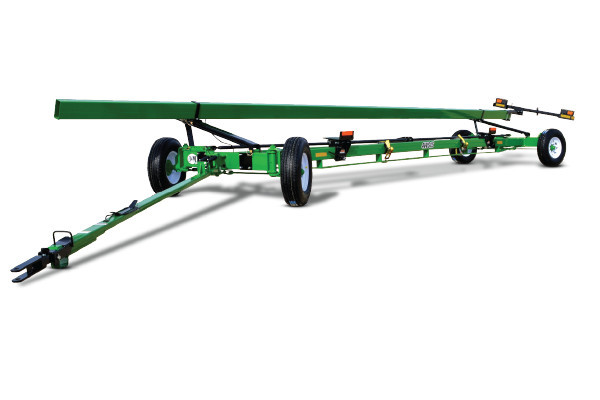

HT‑974 Series header transports feature an economical, low‑profile design with front steering for quick and easy towing. Now also available in Heavy‑Duty 16' and 20' transports for folding corn and forage harvester heads.
Standard Transport
25', 30', and 36' Transports
Designed for combines that have limited header travel, the standard duty low‑profile header transports come in 25', 30', or 36' long upper bar options. These strong, versatile transports have a 8,140‑10,620 lbs net carrying capacity.
Heavy-Duty Series for Folding Heads
16' and 20' Transports
HT-974-16 and HT-974-20 transports are made for folding corn and forage harvester heads. The compact size and heavy duty construction features a thick wall upper bar and trussed lower bar to accomodate the extra weight of folding heads. The Heavy-Duty Series is available in both the 16' and 20' sizes. The low overall height allows the header to be placed on the tranport with ease.
Specs
| SPECIFICATIONS | HT-974L-30 |
| Weight | 1,755 lbs. |
| Capacity (Net) | 10,700 lbs. |
| Spindle Size | 1 3/4" Diameter |
| Wheel Size | 15"x6" - 6 Bolt |
| Tire Size | 215/75R15-E |
| Steel Upper Bar | 4"x6" |
| Upper Bar Length | 30' |
| Box Channel Axle Frame | 6" |
