Features
| Features | Benefits |
| Available in 74" ( 1.88m) and | Provides for excellent productivity and ideal sizes for most skid steers and compact |
| 84" (2.13 m) working widths | utility tractors. |
| Connect under pressure hydraulic couplers | Coupler are easier to connect and disconnect under pressure. |
| Direct drive motor | Improves efficiency. |
| Forward and rearward travel | Broom can operate while traveling forward or backward. Gutter broom must be shut off when operating backward. |
| 26" (66 cm) Bristle diameter | Provides for long service life. |
| Choice of poly, wire, or combination | Allows owner/operators to meet operational needs. Poly/wire combinations provide |
| poly/wire bristles | more wear life and more aggressive sweeping action. |
| Easily removable brush drive | Allows for quick and easy change out of wafers. If included, only case drain hydraulic line must be disconnected. |
| Adjustable broom hood | Broom hood can be adjusted down as the bristles wear to extend the life of the broom. |
| Reversible & replaceable cutting edge | Increases cutting edge life and can be replaced when worn out. |
| Compatible with 12- 25 gpm (45-95 Lpm) hydraulic flow | Allows attachment to a wide range of skid steers. |
| Up to 230 rpm brush rotation | Provides for good sweeping action and material control. |
| Rubber dust deflector flap | Helps keep dust levels under control and down and under the broom hood and out of the operators field of vision. |
| Optional gutter broom | Makes it easier to clean curbs and along side buildings. Adds 12" (30.5 cm) to the cleaning width. |
| Optional dust suppression kits | Wets the dust before sweeping it to help keep airborne dust down to a minimum. |
Specs

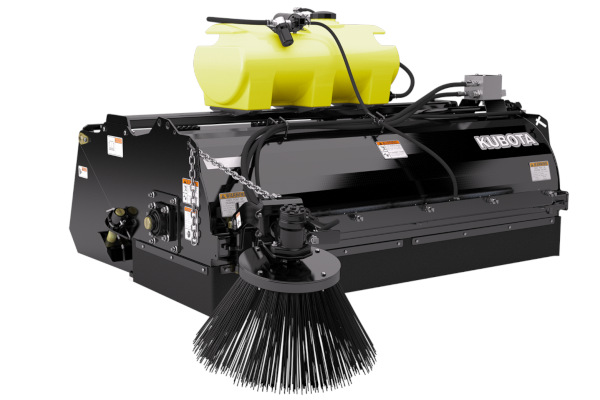

| Model Number | HB84 |
| Hitch | Skid steer quick attach, meets ISO 24410 |
| Weight of base unit without broom | 1118 lbs (507 kg) |
| Broom weights Poly broom Wire broom Combination broom |
251 lbs (114 kg) 251 lbs (114 kg) 251 lbs (114 kg) |
| Optional weights Gutter broom Dust suppression Dust suppression (Main & gutter broom) |
101 lbs (46 kg) 206 lbs (93 kg) 210 lbs (95 kg) |
| Overall width | 92" (2.34 m) |
| Overall height | 46" (1.17 m) |
| Wafers Poly broom Wire broom Combination broom |
41 Poly wafers 41 Wire wafers 21 Poly & 20 wire wafers |
| Sweeping width | 84" (2.13 m) |
| Sweeping width with gutter broom | 96" (2.44 m) |
| Broom diameter | 26" (66 cm) |
| Broom rotor shaft Without gutter broom With gutter broom |
Quick change broom core with no hydraulic hose disconnect in changeover. Quick change broom core with return to sump hydraulic hose disconnect only. |
| Square drive system | Replaceable |
| Broom bristle type | 100% Poly, 100% wire, or 50% poly and 50% wire |
| Hydraulic gpm range | 12-25 gpm (45-95 Lpm) |
| Minimum hydraulic flow required | 12 gpm (45 Lpm) @ 2000 psi (13.8 mPa) |
| Maximum hydraulic pressure rating | 3500 psi (24.1 mPa) |
| Broom speed range | 100 - 230 rpm |
| Hydraulic rotor drive motor | Single motor drive standard |
| Hydraulic hoses | Standard |
| Hydraulic couplers | Standard flat faced couplers |
| Bucket shell thickness | 3/16" |
| Bolt-on cutting edge | Standard 5/8"x 8" |
| Broom hood thickness | 12 ga sheet metal |
| Optional water tank capacity | 25 gal (95 L) |
