Features
| Features | Benefits |
| Category l & ll hitch Easy | 3-point mounting on various types of tractors. |
| Narrow row spacing & low profile box | Ideal for orchards & vineyards. |
| Choice of 2x13 Single Press Wheels or 3x13 Center Rib Press Wheels | Press wheel options allow tailoring to various soil conditions. |
| 2 bu/ft. Box Capacity | Larger box reduces downtime / more acres per fill. |
| 1 3/4" Fluted Seed Cups with Powdered metal flutes | Delivers outstanding accuracy. |
| 4 Speed Gearbox for various seed rates | Makes seed rates changes quick and painless. |
| Heavy Duty Coil Springs for down pressure on press wheels | Gives you the range from 90 to 180 lbs. of consistent down pressure. |
| T-Handle Opener Depth Adjustment | Provides 18 different positions for accurate depth. |
Specs

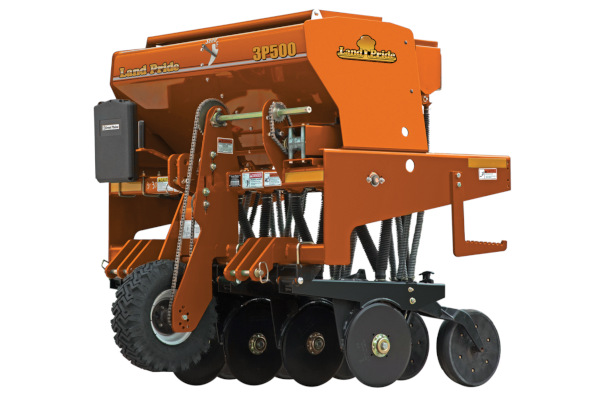

| Drill Model | 3P500V |
| Row Count | 9 |
| Row Spacing | 6.0 In. (15.2 cm) |
| Swath | 54.0 in. ( 137.2 cm) |
| Transport Width | 58 in. ( 146 cm) |
| Length | 57 in. (145 cm) |
| Working Height | 50 in. ( 127 cm) |
| Weight, Maximum, Empty¹ | 1300 lbs. (590 kg) |
| Weight, Maximum, Full | 1810 lbs. (230 kg) |
| Main Seed Box Capacity | 8.5 bu (300 liters) |
| Seed Box Agitator | Standard |
| Min. Tractor HP Req.² | 35 hp (26 kW) |
| Hitch Type | Category I & II |
| Tire Size | 5.70 L x 8 Lug Type |
| Operating Depth | 0 to 3.5 in. (0 to 8.9 cm) |
| 1. See "Transporting" topic for typical weights of various configurations. | |
| 2. Power requirements vary significantly with conditions and practices. | |
