Features
| FEATURES | BENEFITS |
| 3 Cutting widths | 48", 60", 72" Able to adapt to various size needs. |
| Gearbox Horsepower rating | 15 - 40 horsepower (11.2 - 22.4 kW) to cover a wide array of tractors. |
| Rear discharge | The wide, even dispersal of grass leaves a fine thin layer directly behind the mower, vs. a possible windrow to the side. Keeps grass from blowing in unwanted areas. Easier to mow around objects. |
| Deflectors | Built-in to throw material down, as well as forcing thrown objects down. |
| Clevis type lower hitch points | Allows for easy hook-up by being able to remove pins and back into clevises. |
| Floating 3-point | Top and bottom hitch points float up and down which allows the mower to float over uneven terrain. |
| Roll formed front on deck | 3/16" roll formed front deck edging for greater strength and impact resistance. |
| Frame-over-deck design | Frames takes stress out of deck by supporting it. |
| 3/16" Deck thickness | Heavy deck material to aid in overall strength and longevity. Reinforced spindle mounts. |
| Lower hitch points adjust in and out | Accommodates many tractor configurations by adjusting in and out. |
| Hard rubber tires | Hard rubber tires are sandwiched between the rim halves, bolted in and can't go flat. Roller bearings allow for a long life. |
| Heavy-duty Gauge wheel arms | 1/4" Gauge wheel arms increases strength. |
| Non-aligned gauge wheels | Rear wheels don't track behind the front wheels to reduce laying grass over. |
| High Blade Tip Speed | 48" = 16,203 fpm 60" = 18,195 fpm For cleaner cutting and better dispersion of clippings. 72" = 18,130 fpm |
| Choices of Blades | Low, medium, high-lift, or mulching blades are available to match customer needs and specific applications. |
| Blade overlap | 1" blade overlap assures no skipping in tight turns. |
| Heavy-duty roller bearings & 1 3/8" machined spindles | Roller bearings for smooth running and quiet operation, 1 3/8" machined spindles for durability, balanced performance, and accuracy. Cast iron housings for added protection and durability. |
| Top greasing spindles | Assures top bearing gets grease. No shields to remove. |
| Single B-section Kevlar belt | Simple one belt design. Kevlar material adds additional strength. |
| Vacuum formed ABS belt guards | No scratching, no rattling. |
| Spring loaded adjustable idler | Allows for constant and proper tension on belt. Better than adjusting gearbox for belt tension. |
| Top Hitch | Top hitch has two hook-up points which allows greater lifting leverage for smaller tractors. |
| Driveline hanger | For ease in hookup and storage of driveline. Keeps driveline off ground. |
| Quick Hitch Compatible | Compatible with Land Pride Quick Hitch for easy attachment and removal increases productivity. (Except 48") |
Specs

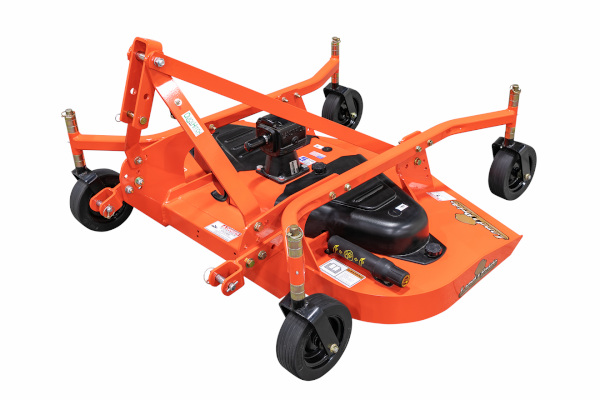

| Model Numbers | FDR1660 |
| Maximum HP - Engine | 40 HP |
| Cutting Width | 60" |
| Overall Width | 62 1/2" |
| Height | 36" |
| Length | 67" |
| Weight | 577# |
| Cutting Height (1/2" increments) | 3/4" - 5 1/4" |
| Deck Material Thickness | 3/16" |
| Blade Tip Speed | 18,195 FPM |
| Blade Construction -3 ea. | 1/4" x 2 1/2" x 16 7/8" Heat Treated Alloy Steel |
| Blade Options | Standard Blades: Medium Lift Optional Blades: Low Lift, High Lift & Mulching |
| Blade Overlap | 1 1/4" |
| Blade Spindles | 1 3/8" dia., Cast Iron Greasable Hubs |
| Discharge | Rear |
| Hitch | Category l |
| Lower Hitch | Floating Clevis with Plated Pins |
| Top Link | Floating Clevis |
| Castered Gauge Wheels | 3 1/4" x 10" Solid Rubber |
| Caster Wheel Spindle | 1" Diameter with Nylon Bushing |
| Drive Train | 540 RPM PTO Cast Iron Housing Gearbox With Beveled Gears, 1:2.83 Ratio Spring Loaded Single V-Belt |
| Gearbox Oil Capacity & Type | 2.5 Pints of 80-90W EP Gear Lube |
| Driveline | Heavy-Duty w/quick coupler, ASAE Cat 2 |
| Front Roller | Optional |
| Quick Hitch Compatible | No |
