Features
| FEATURES | BENEFITS |
| Surpassed rugged industry standards | All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures. |
| 540 or 1000 RPM | Fits wider variety of tractors. |
| High Gearbox HP rating | Gearboxes are built rugged. See Specifications for actual Gearbox HP ratings. |
| 3 Gearboxes | Allows equal torque to be spread to left and right gearbox. |
| Splined rubber flex-couplers between the center and outboard gearboxes | Protects the driveline and gearboxes from hard objects in the blade path. |
| Pull-Type constant velocity driveline Option | Constant velocity driveline reduces chatter and extends life of U-joint during turns. |
| Slip-clutch protection on main driveline | Slip-clutch is more convenient than shear-bolt, protects gearbox against sudden impact. |
| 8'- Cat. 1 & 2 or 10'- Cat. 2 & 3 3-Point & Semi-mount Hitches or Pull-type Hitch | Fits a wide range of tractors. Semi-mount and Pull-type fit older tractors without a top link and smaller tractors without enough lift capacity. |
| 10 Gauge deck, fully welded | Fully welded deck adds rigidity. |
| 1/4" Thick sidewalls | Protects sidewalls from thrown objects. |
| Round back design | Allows for cleaner and efficient discharge of material, helps eliminate damage to rear corners by not sticking out. |
| Pull-type w/dual leveling rods | Dual leveling rods eliminate deck twisting when going over uneven terrain. |
| Chain or rubber guard option | Reduces flying debris. |
| Full length skids with replaceable shoes | Adds reinforcement to side panels. Replaceable shoes allow for change before wearing through to weld-on piece. |
| Splined blade hub | Splined blade hub offers tight non-slipping attachment to output shaft. |
| 3/16" Round stump jumper | Standard stump jumper aids in sliding over obstructions, which helps protect gearbox output shaft. |
| 1" x 5" Blade bar | Heavy-duty blade bar adds support to stump jumper as well as gearbox output shaft. |
| 1/2" x 4" Heat-treated blades | Heat-treated blades last longer than non-heat-treated blades. |
| 3" Diameter cutting capacity | Aids in cutting brush. |
| High blade tip speed | Means cleaner cutting. |
| Laminated tires | Laminated tires can handle almost any condition and don't go flat. |
| Quick-Hitch adaptable | 3-point and semi-mount are Quick-hitch adaptable. |
Specs

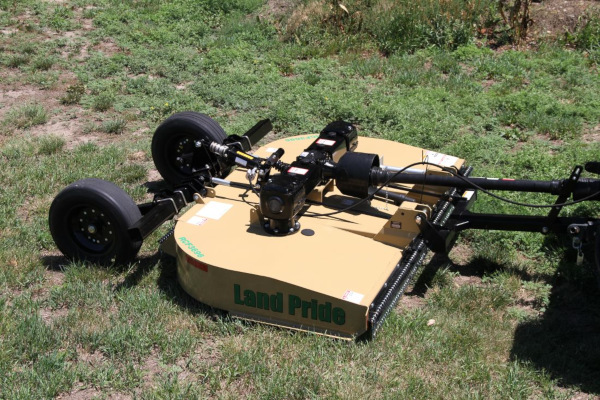

| Model Numbers | RCF3696 (540 rpm) RCFM3696 (1000 rpm) |
| Machine weight with front & rear rubber guards. Includes hydraulic cylinder & 21" wheels with semi-mount and pull type units |
3-Point mount = 1,750 lbs. (793.8 kg) Semi-mount = 1,915 lbs. (868.6 kg) Pull-type = 2,090 lbs. (948.0 kg) |
| Hitch | 3-Point & semi-mount Category 1 & 2 Quick Hitch Adaptable Pull-type - with dual self level rods |
| Pull type tongue weight | 933 lbs. (423.2 kg) |
| Park jack | Parking jack attaches to the tongue of the pull type cutter |
| Cutting width | 8' - 0" (2.44 m) |
| Overall width | 8' - 7" (2.62 m) |
| Overall length 3-point mounted semi-mounted pull-type |
8' - 10" (2.69 m) 9' - 5" (2.87 m) 12' - 5" (3.78 m) |
| Deck height | 13" (33.0 cm) |
| Cutting height | 2" - 12" (5.1 cm - 30.5 cm) |
| Cutting capacity | 3" (7.6 cm) |
| Tractor Hp rating | Lift-type - 50 - 130 (37.3 - 96.9 kw) Semi mount - 40 - 130 (29.8 - 96.9 kw) Pull-type - 35 - 130 (26.1 - 96.9 kw) |
| Gearbox horsepower rating | T-Box - 210 hp (156.6 kw), outboard 205 hp (152.9 kw) |
| Gearbox | 540 rpm or 1000 rpm driven gearbox. Cast iron housing, beveled gears |
| Gearbox input / output shaft size | Input shaft = 1 3/4" (4.4 cm) - 20 spline Output shaft = 2 3/8" (6.0 cm) Dia. |
| Gearbox lubrication | 80-90w EP gear lube |
| Gearbox oil capacity end boxes T-box |
Omni = 5.5 pints (2.60 L) or Comer = 10 pints (4.73 L) Comer = 4.5 pints (2.13 L) |
| Deck material thickness | 10 gauge (3.4 mm) |
| Deck side skirt thickness | 1/4" (6 mm) |
| Skids | Replaceable |
| Stump jumper | 2 ea. - 3/16" (5 mm) Round pan |
| Blades (4) | 1/2" x 4" (1.3 cm x 10.2 cm) Heat treated Free-swinging suction blades |
| Blade bolts | Keyed with harden flat washer and locknut |
| Blade tip speed | 540 rpm 17,100 fpm (86.9 mps) 1000 rpm 17,400 fpm (88.4 mps) |
| Driveline 3-point & semi-mount pull type |
ASAE Cat 4 ASE Cat. 4 equal angle shaft or constant velocity u-joint |
| Driveline protection | 540 rpm - 4 plate slip clutch, Rubber flex coupler to wing boxes 1000 rpm - 2 plate slip clutch, Rubber flex coupler to wing boxes |
| Tailwheel options 3-point without rear axle: 2 tires 3-point with rear axle: 2 tires semi-mount: 2 tires pull-type w/single spindle: 2 tires pull-type w/dual spindles: 4 tires |
4" x 8" x 15 1/4" Caster laminated 4" x 8" x 15 1/4" Caster laminated or 6" x 9" x 21" caster laminated 4" x 8" x 15 1/4" Caster laminated or 6" x 9" x 21" caster laminated 6" x 9" x 21" Laminated or 24" x 7.7" recap foam filled aircraft or 29" x 16 ply aircraft 6" x 9" x 21" Laminated or 24" x 7.7" recap foam filled aircraft or 29" x 16 ply aircraft |
| Wheel bearings | Tapered roller bearing in cast iron hub |
| Shock absorption | Spring shock absorber on axle of semi-mount & pull type |
| Front guard | Optional: Rubber deflector, single chain guard, or double chain guard |
| Rear guard | Optional: Rubber deflector, single chain guard, or double chain guard |
