Features
| FEATURES | BENEFITS |
| Working widths (72", 84" & 96") | Choice of three sizes to pick from. |
| 35-80 HP rating | Fits a wide variety of small tractors. |
| Quick-Hitch | Fits Land Pride Quick-Hitch. |
| Blade angles left and right up to 45° in forward position and 30° in reverse position |
Allows operator to set the blade at many angles to complete different jobs with satisfactory results. See Specifications for number of angles in forward and reverse positions. |
| Blade offsets left or right up to 26" | Manually rotate main frame in 15° increments up to 45° to cover either tractor tire and to allow operators to work next to retaining walls, abutments, and curbing. |
| Blade tilts up or down up to 15° | (5 positions: Center, 2 clockwise, and 2 counterclockwise) Allows operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches. |
| 17" High moldboard | Rolled moldboard allows material to flow easily, which means less drag, less HP. 17" High moldboard for excellent capacity. |
| Reversible cutting edge | For twice the life. |
| Parking Stand | Store unit with front of hitch off the ground, allows for easier hook-up. |
| Hydraulic Angling (Accessory) | Allows operator to change blade angle from the tractor seat. |
| End Plates (accessory) | End plates hold material in to be moved. |
| Skid Shoes (accessory) | Help protect from hitting low obstructions by keeping the cutting edge off the ground. Set skid shoes to clear obstructions like manhole covers and street cracks. |
Specs

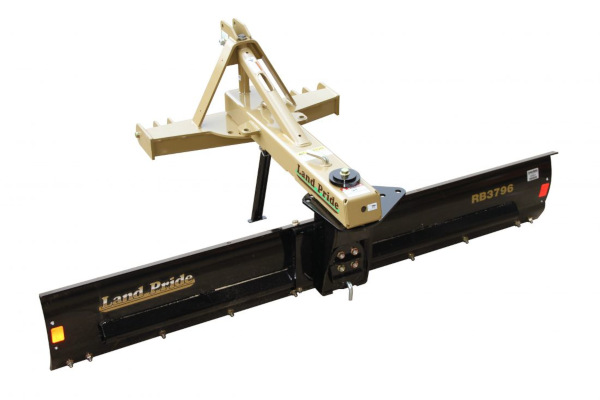

| Model No. | RB3796 |
| Blade Width | 95 1/2" |
| Approximate Weight | 665 lbs. |
| Horsepower Rating | 35-80 HP |
| Moldboard Height | 17" |
| Moldboard Thickness | 5/16" |
| Reinforced Blade | Yes |
| Hitch Type | Cat. l & ll Combination (Quick Hitch Adaptable) |
| Blade Angle Standard (Manually) Hydraulically |
7 Forward positions up to 45° clockwise and counterclockwise 3 Reverse positions up to 30° clockwise and counterclockwise Any degree up to 45° forward and 30° in reverse. |
| Blade Offset | Maximum 26" left or right in 15° increments |
| Blade Tilt | 7 Positions; Maximum 22.5° up and 22.5° down in 7 1/2° increments |
| Cutting Edge | 1/2" x 6" Heat treated, Replaceable & Reversible (Double bevel) |
| Parking Stand | Folding |
| Accessories | Hydraulic Blade Angling, Skid Shoes, and End Plates |
