Features
| FEATURES | BENEFITS |
| 84", 96", 108" Working widths | Choice of three sizes to pick from. All sizes handle large capacities. |
| 65 to 100 hp rating | Fits a wide variety of tractors. |
| Cat. 1 or 2 | Fits wide variety of tractors. |
| Fits Land Pride quick hitch | Quick and easy attaching without leaving tractor seat. |
| 3-Way Blade | Tilt, angle and offset features available hydraulically or manually. |
| Blade angles left and right up to 45° in either direction |
(15 positions manually: Center, 7 clockwise, and 7 counterclockwise) (Hydraulically: Any degree up to 45°) Allows operator to set the blade at the angle of his choice up to 45° to move the desired amount of material with satisfactory results. |
| Blade offsets left and right up to 30” | (15 positions manually: Center, 7 positions left, and 7 positions right) (Hydraulically: Any position up to 30") Allows the operator to position the end of the moldboard beyond tractor tire and close to solid obstacles such as fences, buildings, and abutments. |
| Blade tilts up and down up to 15° | Allows the operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches of various sizes. |
| Fully welded main frame | Fully welded adds overall strength and rigidity to blade frame. |
| Heavy-duty pivot assembly with 3 1/8" solid steel kingpin |
3/4" Plate steel turntable and 3 1/8" kingpin for handling the high amount of torque that can be transferred to this area. |
| Formed 17 inch Moldboard | Precisely formed moldboard rolls dirt and debris with ease. |
| 5/16" Moldboard thickness with box reinforcement | Thick material with fully welded box reinforcement creates a strong moldboard to handle tough jobs. |
| Reversible cutting edge | Get twice the wear from the cutting edge by flipping it over. |
| Retractable parking stand | Able to store the unit with the frame off the ground, also aids in attaching to tractor. |
| Skid shoes (optional) | Help protect from hitting low obstructions by keeping the moldboard off the ground. Set skid shoes to clear obstructions like manhole covers and street cracks. |
| End plates (optional) | End plates hold material in to be moved. |
| Cushion valve (optional) | Helps protect the moldboard and cylinders in the event an obstruction is hit by allowing hydraulic fluid to bypass the cushion valve and flow back towards the tractor. |
| Selector Valve (optional) | Provides a way to operate 2 cylinders at one outlet, thereby reducing the number of required outlets by one. |
Specs

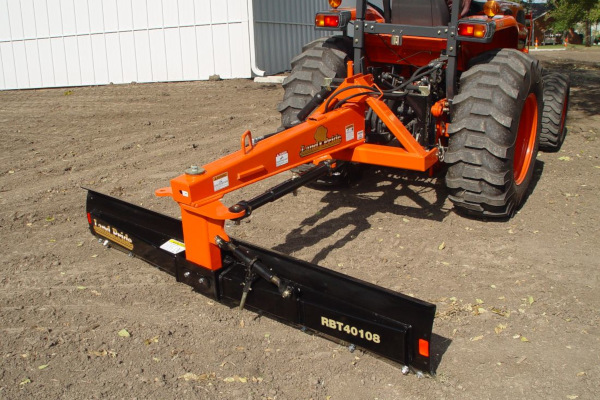

| Model | RBT40108 |
| Blade Width | 108" |
| Approximate Weight (lbs.) w/manual links | 898 lbs |
| Maximum Engine Horsepower | 100 HP - 2 Wheel drive |
| Maximum G.V.W. (lbs.) | 9500 lbs. |
| Hitch Type | Cat. 1 & 2; Fits Land Pride Quick Hitch |
| Blade angle Manual linkage: Hydraulic cylinder: |
With blade facing forward or reversed Up to 45° in 15° increments clockwise and counterclockwise in either direction Up to 45° clockwise and counterclockwise in either direction |
| Angle Cylinder | 3 1/2" X 16" X 1 1/4" |
| Blade offset Manual ratchet jack: Hydraulic cylinder: |
Maximum 15° up and 15° down with blade facing forward or reversed Maximum 15° up and 15° down with blade facing forward or reversed |
| Offset Cylinder | 3 1/2" X 16" X 1 1/4" |
| Tilt Angle Manual ratchet jack Hydraulic cylinder |
Maximum 15° up and 15° down with blade facing forward or reversed Maximum 15° up and 15° down with blade facing forward or reversed |
| Tilt Cylinder | 3" X 6" X 1 1/4" |
| Moldboard Height | 17" |
| Moldboard Thickness | 5/16" reinforced, 1/4" tapered reinforcement channel |
| MoldBoard Kingpin | 3" |
| Cutting Edge | 1/2" x 6" Heat treated reversible blade |
| Main Frame | Fully enclosed welded, formed box |
| Parking Stand | Retractable |
| Accessories | Skid Shoes, End Plates, Hydraulic Selector Valve and Hydraulic Cushion Valve |
