Features
| Features | Benefits |
| Reinforced 12 gauge moldboard design | Provides added strength and durability. |
| Choice of 54" (1.37 m) or 60" (1.52m) working widths | Allows customers to choose the blade that meets their operational needs. |
| Optional double-acting angling cylinder | Easily enables up to 24 degrees of angling to allow distributing th load where you want it to go. |
| Trip design with springs | Protects the structural integrity of the blade while still maintaining load control no matter what the bottom edge encounters. |
| Easy-attaching mounting system | Adapted for tractor loaders with quick-attach front mounting plates. |
| Replaceable bottom wear edge | Offered in steel or heavy-duty poly construction to match ground & surface operating conditions |
| Skid shoes | Offered as standard equipment. Establish lower limits of blade operation to prevent surface gouging or cutting too deep. Also provides protection to the moldboard as cutting edge wears. |
| Blade marker | Provides operator with improved awareness and visibility of outermost edges of the blade to prevent unwanted contact with ground obstacles. |
| Locking system | Allows for light blading |
| Optional top-mounted rubber deflector | Helps prevent snow from over-topping the moldboard in deeper snow conditions. |
Specs

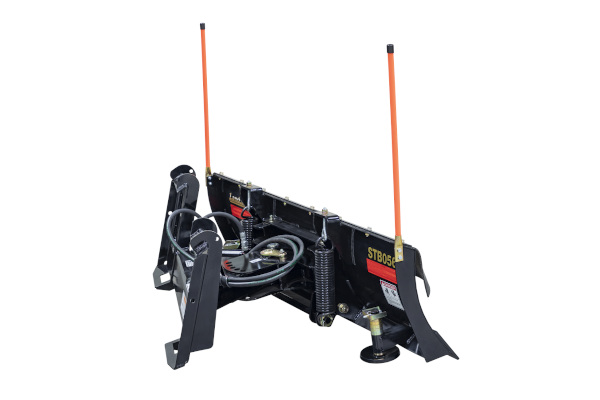

| MODEL NUMBER | STB0560 |
| Tractor Horsepower | 17 to 30 hp (12.7 to 22.4 kW) |
| Moldboard Thickness | 12 Ga. |
| Blade Width (Maximum Cutting Width) | 60" (150 cm) |
| Cutting Width @ 24° Angle | 55" (140 cm) |
| Moldboard Height (With Blade) | 17" (43 cm) |
| Maximum Blade Angle | 24° left & 24° right |
| Angle Cylinder Size | 2" bore x 4" stroke |
| Maximum Hydraulic Pressure | 3000 psi (21 mPa) |
| Cutting Edge (Steel & Poly) | Reversible: 3/8" x 6" Steel Reversible: 1/2" x 6" Poly |
| Trip Release Pressure | 250-400 lbs (110-180 kg) |
| Base Unit Weight | With steel cutting edge = 288 lbs (131 kg) With poly cutting edge = 267 lbs (121 kg) |
