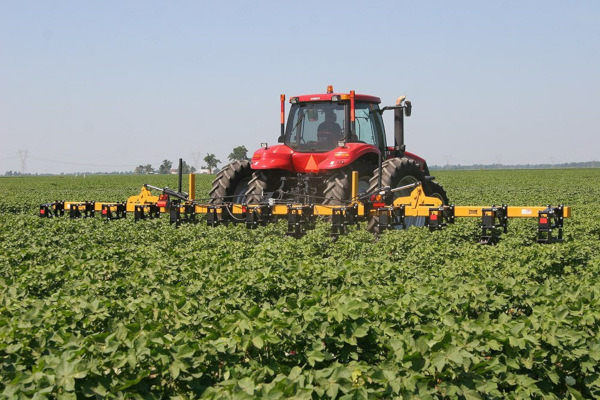

Features
- 7” x 7” x 3/8” Heavy-Duty Tool Bar
- Wide Parallel Linkage with Heavy-Duty Down Pressure Springs
- 6” x 4” Gang Frames
- 16” Penetrator Sweeps Standard on 30” Row Spacing
- 24” Penetrator Sweeps Standard on 36” or 38” Row Spacing
- Adjustable 20” Coulters
- Fork Mounted Gauge Wheels with 4.6” x 16” Hard Rubber Tires
- 14” Weeding Discs with Triple Lip Sealed Bearings
- Cat. II Three-Point Hitch for 4 Through 8 Row Units
- Cat. III Three-Point Hitch for 10 Through 16 Row Units
- Yellow Powder Coat Paint
- Safety Warning Lights
Specs
| Product Attributes | 2010-30HC |
| Approximate Weight - Without Weeding Disc | 4,739 lbs. (2,150 kg) |
| Approximate Weight - With Weeding Disc | 5,500 lbs. (2,495 kg) |
| Number of Rows | 10 |
| Row Spacing | 30 in. (762 mm) |
| Transport Width | 26 ft. 3 in. (8.0 m) |
| Frame | 7 in. x 7 in. x 0.375 in. (178 x 178 x 9.5 mm) |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Three-Point Hitch | Cat. III |
| Hitch Type | Bolt-On Hitch Weldments |
| Gang Frame | 6 in. x 4 in. x 0.25 in. (152 x 102 x 6.35 mm) |
| Gang Coulter | 20 in. (508 mm) Adjustable Coulter |
| Gang Gauge Wheels | Adjustable Fork Mounted |
| Gauge Wheel Tires | 4.6 in. x 16 in. (117 x 406 mm) Hard Rubber |
| Gang Shank Sweeps | 16 in. (406 mm) Penetrator |
| Depth of Operation | Adjustable |
| Cut Angle | 11, 15, 19 and 23 Degrees |
| Weeding Discs | 14 in. (356 mm) |
| Weeding Disc Bearings | Triple Lip Sealed Roller Bearings |
| Safety Warning Lights and SMV Emblem | Standard |
| Powder Coat Paint, Yellow | Standard |
| Penetrator Sweep (18 in.) | Optional |
| Flat Sweep (24 in.) | N/A |
| Lift Assist Wheel Assembly | Optional |
| Ridgers (4 in. ) | Optional |
| Ridgers (8 in.) | Optional |
| Anhydrous Knife Assembly | Optional |
| Liquid Fertilizer Spray Attachment | Optional |
| Horsepower Requirements | Not Published |
| Specifications subject to change with or without notice. |
