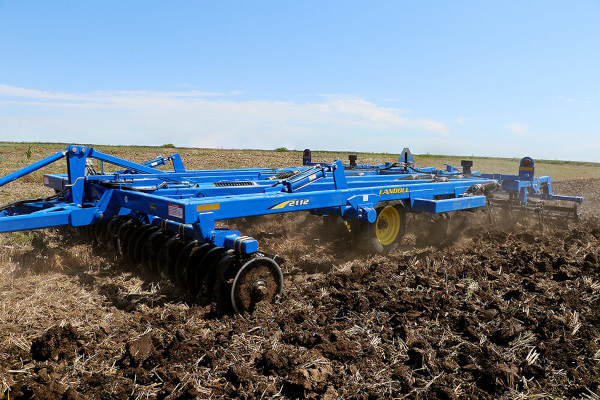

Features
Size Heavy Residue and Eliminate Compaction
- 22” Coulters on 7 ½” Spacing with Depth Gauge Indicator
- 1 ¾” Gang Bolt
- 5 ¾” Solid Cast Spools
- C-Cushion Bearing Standards with Trunnion Bearings with Triple Lip Seal
- Scraper Mounted Bracket Attached to C-Cushion Bearing Standard
- Auto-Reset Shank Assemblies with 1,750 lb. Point Load, 14” Trip Height, 32” Under Frame Clearance, Adjustable 50 or 60 Degree Point Angle
- Rigid Shear Bolt Shanks with 32” Under Frame Clearance
- Choice of Twisted Shovels or Straight Points
- 5 ½” Lift Axles with Maintenance Free Lift System
- Walking Tandems with Greaseable Bearings on all Sizes
- 340/65R x 18 Radial Tires with 8-Bolt Hubs and 3” Slip-In Spindles on Rigid Models and Wings of Folding Units
- 400/60R x 18 Radial Tires with 8-Bolt Hubs and 3 ¼” Slip-In Spindles on Center Sections of Folding Units
- Self-Leveling Hitch with Manual Adjustment
- Single Point, Front Mounted Depth Control
- Adjustment and Gang Wrench
- Sapphire Blue Powder Coat Paint
Specs
| Product Attributes | 2112-11 |
| Approximate Weight | 14,576 lbs. (6,612kg) |
| Working Width | 13 ft. 9 in. (4.2 m) |
| Transport Width | 14 ft. 4 in. (4.4 m) |
| Transport Height | N/A |
| Number of Coulter Blades | 23 |
| Blade Spacing | 7.5 in. (191 mm) |
| Blade Size | 22 in. x 0.25 in. (559 x 6.4 mm) |
| Coulter Protection | Spring Cushioned/C-Flex |
| Blade Scrapers | Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) |
| Blade Scraper Mount | C-Cushion Mounted |
| Gang Spools | 5.75 in. (146 mm) Diameter Solid Cast |
| Gang Shaft | 1.75 in. (44.5 mm) Round |
| Number of Bearings | 6 |
| Gang Bearing Type | C-Cushion Trunnion Mount, Greaseable Triple Lip Seals |
| Number of Shanks | 11 |
| Shank Type | Rigid Shear Bolt |
| Shank Spacing | 15 in. (381 mm) |
| Shank Mounts | Wrap-Around Design |
| Shank Arms | 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) |
| Trip Height | 14 in. (356 mm) |
| Shank Size | 1.25 in. x 2.5 in. (31.8 x 63.5 mm) |
| Standard Shovels | 4 in. (102 mm) Twisted |
| Point Angle | 50 or 60 Degree |
| Shank Offset | 12 in. (305 mm) on Rear Bar |
| Under Frame Clearance | 32 in. (813 mm) |
| Frame | 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Transport Lift Axles | 5.5 in. (140 mm) with UHMW Maintenance Free Pivots |
| Transport Axle Type | Walking Tandems with Greaseable Pivots |
| Tire Size - Main Frame | (4) 340/65R x 18 Radial Tires |
| Wheel Hubs - Main Frame | 8-Bolt |
| Spindles - Main Frame | 3 in. (76.2 mm) Slip-In Spindles |
| Tire Size - Wing Frame | N/A |
| Wheel Hubs - Wing Frame | N/A |
| Spindles - Wing Frame | N/A |
| Hitch Type | Self-Leveling with Manual Adjustment |
| Hitch Category | Cat. IV Ball, Single Lip with 2 in. (50.8 mm) Hole |
| Machine Depth Control | Single Point, Front Mounted |
| Weight Kits Needed | With Attachment - 3 Required |
| Safety Warning Lights and SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Adjustment Wrenches | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Cat. III Single Lip Hitch Clevis | Optional |
| Cat. IV Single Lip Hitch Clevis | Standard |
| Cat. V Single Lip Hitch Clevis | N/A |
| 2 in. Straight Points | Optional |
| 3 in. Twisted Shovels | Optional |
| Rear Hitch | Optional |
| Rear Hitch With Hydraulic Hoses | Optional |
| Spare Tire & Wheel Assembly | Optional |
| Horsepower Requirements | 20 to 30 HP (15 to 22 kW) per Shank |
Specifications subject to change with or without notice.
