More Accurate Fertilizer Blends

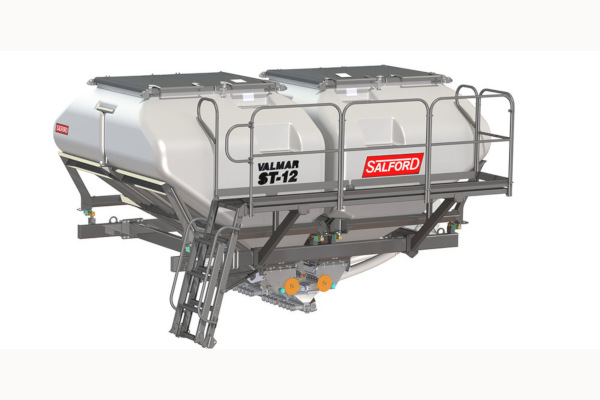

ST-12 models can carry two separate commodities with their dual ST-12 dual 6 ton/185 cu-ft. poly tanks.  Blending is done right at the meter, rather than in the air line.  This ensures the most accurate blend possible.

Roller Metering

ST-Series applicators use peg roller meters, which excel at metering seed or fertilizer. Compared to auger metering these rollers offer greater accuracy, are less susceptible to plugging, are easier to change and do not grind product.  Peg rollers are equipped with brushes for self cleaning. Low rate rollers available for cover crop and micro nutrients.

*Options must be requested at order.

Both metering systems deliver product to a single funnel that drops in to a common venturi air stream for the highest possible blending accuracy and efficiency.  There is no need to run two sets of air lines to the application knife as all the blending happens right at the metering system.  The air manifold and funnels are only connected to one metering system to maintain scale reading integrity.

The number of air outlets is determined by the funnel/air manifold assembly, which can be easily changed by simply unbolting it from the metering system.  Updating from a 12-outlet to 16-outlet system can be achieved in a matter of minutes.  A 20” fan driven by a 12cc hydraulic motor spins at up to 5900 rpm to provide plenty of air at high rates.  By maintaining a set pressure in the air plenum behind the venturi manifold, a constant, reliable airflow can be achieved regardless of the number of outlets.

Section Control Ready
ST-Series models are capable of ISOBUS compatible section control.  The ST-12 metering system is split into four sections for the most accurate, cost effective application.
