Features

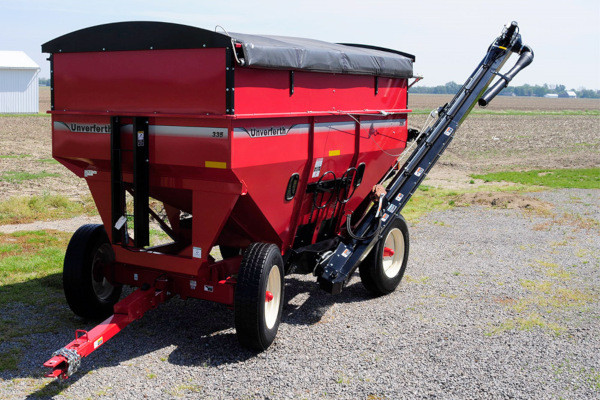

- Universal mounting bracket allows for matching the Unverferth gravity box conveyor to all gravity boxes with door widths ranging from 29 1/2" to 60".
- The deep-intake sump keeps the conveyor full for optimum speed
- The easily accessible cleanout door simplifies conveyor cleanup for maintaining varietal and hybrid separation
- The high-efficiency orbital motor is mounted near the top of the conveyor for a cleaner operating environment, longer seal life and greater under-hopper clearance
- Speed is easily adjustable from 0-500 rpm
- The 16-foot conveyor length and 3-stage telescopic downspout, that extends from 6 to 10 feet, optimizes filling reach and operator convenience
- An optional electronic on/off kit provides easy use while filling the planter and features magnetic mount for easy access and storage
- The tube-mounted friction disc winch provides easy vertical adjustment
- The Unverferth gravity box conveyor tucks securely to the side of the gravity box when not in use for enhanced transport safety and storage space efficiency
- Box-mountable hydraulic power unit for self-contained use without a tractor and features:
- Produces 6.5 GPM flow at 2900 p.s.i. of hydraulic flow to easily power your auger
- 8 (240CC) horsepower Honda engine with electric start and pull-start backup
- 4.5 gallon reservoir with adjustable relief valve along with combination level indicator/temperature gauge
- Reservoir features in-line return filter and intake strainer to keep hydraulic system clean
- Available mounting bracket for universal mounting to gravity boxes
