Features

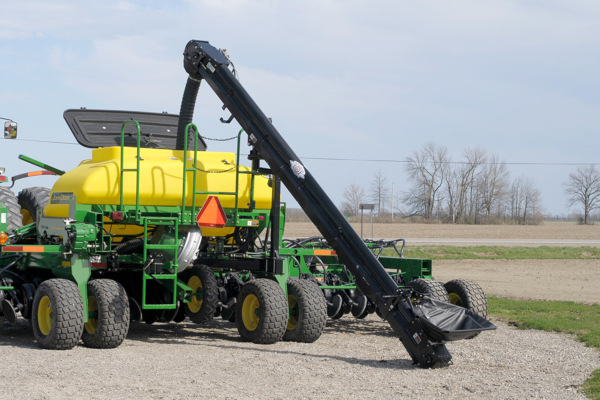

- Cupped and cleated 8-inch belt inside of 6-inch tube gently carries seed to planter or drill compartments
- Conveniently placed, dual on/off controls and an 8'-telescoping downspout on all models allow for easy, one-person filling of the seedbox from the ground or planter platform
- Models are available for 1690, 1890 and 1990 drills as well as model 1770, 1790 CCS and DB-Series planters
- Super-gentle, variable-speed conveyors feature tubular steel construction with powder-coat finish for longer life
- Moves seed at rates up to 10 bushels per minute for quick filling
- Two-inch vulcanized paddles are spaced 9 inches apart for carrying large seed volumes at low speeds
- Conveyor hoppers are fitted with canvas cover for minimizing debris accumulation during planting, transport and storage
- A clean-out door is standard for easily removing leftover seed when switching varieties
- Well balanced design allows easy movement into working or transport position
- Conveyors for drill models 1690, 1890 and 1990 store across the rear of the drill within its transport height and width, similar to auger models, for enhanced roadway safety
Specs
| Model | JD 1690/1890/1990 CCS | JD 1770/1790 CCS | JD 1770/1790 CCS w/Fert. Option |
| Size | 6" x 16' Rigid | 6" x 18' Rigid | 6" x 18' Rigid |
| Storage | Rear | Center | Center |
| Added Transport | - | 24" length | 5" height 48" length |
| Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice. |
