Features
Wear Edge Technology
Westfied developed Wear Edge Technology™ to extend the life of the flighting. This provides an extra layer of steel welded to the edge on critical wear points. As a result, flighting lasts longer and needs to be replaced less often – saving time and money.
Powder Coat Paint
Westfield uses a durable powder coat paint for a strong, long lasting finish that looks good and protects against rust.
A-Frame Undercarriage

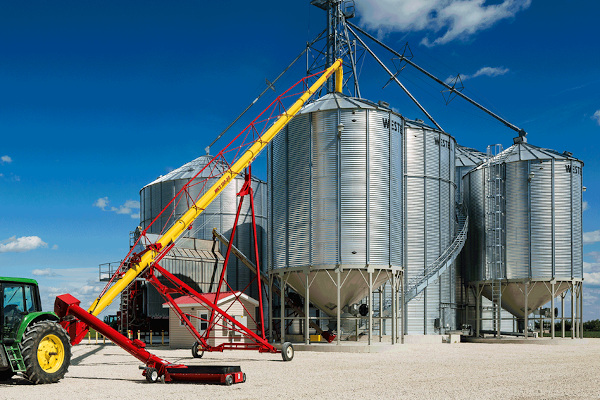

The MKX Series features an A-frame undercarriage to withstand bowing and maintain rigid alignment during heavy loads.
Low Profile Hopper
The low profile hopper features left and right hand flighting to pull grain toward the center of the hopper so it flows efficiently up into the tapered boot – maximizing capacity and minimizing unload time.
Optional Features
- LED working lights
- Transport lights
- Right angle drive
- Speed reducer-reverser kit
- Reverser kit
Specs
| MODEL | MKX13-74 |
| TUBE GAUGE | 12 GA |
| TUBE CONNECTORS | Heavy-Duty ¼" (0.6cm) Angle Flange |
| MAIN FLIGHTING | 11 ¾" (29.8cm) OD x ¼" (0.6cm) Stretched & Welded (Wear Edge Technology™ at Critical Transfer Points) |
| WEAR EDGE TECHNOLOGY™ (REINFORCED FLIGHT)" |
¼" (0.6cm) plus 10 GA Ribbon Weld = 5 /16" (0.8cm) Wear Edge Technology™ on Critical Grain Transfer Points |
| FLIGHTING SHAFT | High Strength 3" (7.6cm) OD x 11 GA Tubing Square Flight Connection |
| UPPER BEARING | 1 ¾" (4.4cm) Pillow Block Greaseable Ball Bearings |
| LOWER BEARING | 2" (5.1cm) Pillow Block Greaseable Ball Bearings |
| TUBE TRUSSING | ³/8" (1cm) Aircraft Type Galvanized Steel Cable |
| HYDRAULIC LIFT | Dual 4" (10.2cm) Single Acting Cylinders with 5 /16" (0.8cm) Aircraft Cable |
| UNDERCARRIAGE | 4" x 11 GA Frame |
| AXLE | 4" (10.2cm) x 4" (10.2cm) Square Tubing |
| HUB | 6-Bolt Agricultural Type |
| TIRES | 16" (40.64cm) |
| PTO SHAFT | 35E Constant Velocity with ³/8" (1cm) Shear Bolt |
| PARKING JACK | 5000 lbs. (2268 kg) Side Wind |
| SPROCKET & CHAIN | Hardened Tooth Sprocket with HD #80 Chain |
| LOW PROFILE HOPPER DIMENSIONS | 60" Length (152.4cm) x 40" Width (101.6cm) x 10 ½" Height (26.7cm) |
| PSI REQUIRED TO RAISE AUGER | 1600 PSI (110.3 bar) |
| HP REQUIRED (WITH DRY WHEAT) | 125 HP (93.2 kW) |
| WHEEL TREAD | 130" (330.2cm) |
| TRANSPORT HEIGHT (14" HITCH) | 14' 5" (4.4m) |
